Description

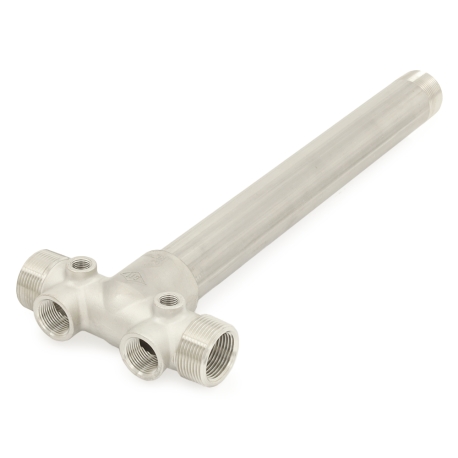

Solid 304 stainless steel, lead-free well tank tee with 1-1/4″ male NPT threaded tank connection, 1-1/4″ MNPT (1″ FNPT inside) inlet/outlet ports, (2) 1/4″ FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4″ FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 15-7/8″ and an overall length of ~16-5/8″.
This well tank tee model is a “Standard/Long” type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection.
For Well-X-Trol type tanks, the maximum tank diameter is 26″ (WX-302/350 & other smaller models).
1-1/4″ connection is ideal for larger tanks and allows for higher flow rates with minimal pressure drop.
