Description

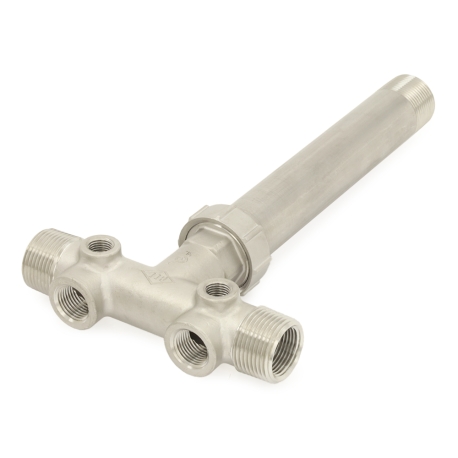

Solid 304 stainless steel, lead-free, Union-type well tank tee with 1″ male NPT threaded tank connection, 1″ MNPT (3/4″ FNPT inside) inlet/outlet ports, (2) 1/4″ FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 1/2″ FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 10″ and an overall length of ~10-1/2″.
This well tank tee model is a “Standard/Long” type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection.
For Well-X-Trol type tanks, the maximum tank diameter is 15″ (WX-201/202/202XL/203/200UG/202UG & other models).
Union style connection simplifies installation and allows for easy tank replacement without removing components.
