Description

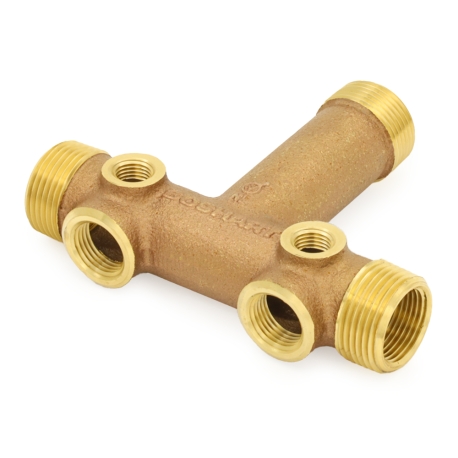

1-piece, solid lead-free brass well tank tee with 1″ male NPT threaded tank connection, 1″ MNPT (3/4″ FNPT inside) inlet/outlet ports, (2) 1/4″ FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 1/2″ FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 3-5/8″ and an overall length of ~4-1/8″.
This well tank tee model is a “Short” type and is intended for well tanks which have a connection which protrudes beyond the base (skirt) of the tank and is visible from the outside.
It is also suitable for direct connection to in-line (non standing – system mount or horizontal) tanks, such as Well-X-Trol WX-104/200/200UG/202UG/200PS/202PS/202H and similar.
