Description

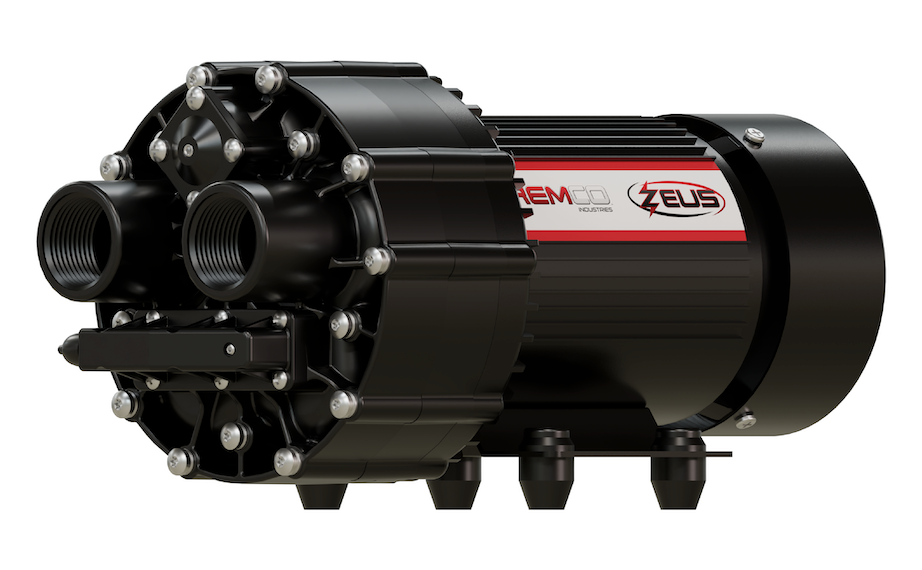

Remco 9559-9K5-971 Zeus Smoothflo Pump – 14GPM, 1″FNPT, Dual Control, 24 VDC, 150PSI, 12″ 10AWG Leads, Heatsink and fan cooled
Optimal System Setup:
** Product warranty will be void if the optimal system setup guidelines are not followed**
- ¾” ID outlet hose recommended, minimum hose size ¾” ID
- Use size 50 spray tips and above
- 200ft maximum hose length
- Do not exceed 130 PSI operating pressure
- If rapid switch cycling occurs contact factory immediately
- Pressure gauge near pump to aid with system monitoring
- 50 AMP fuse recommended
