Description

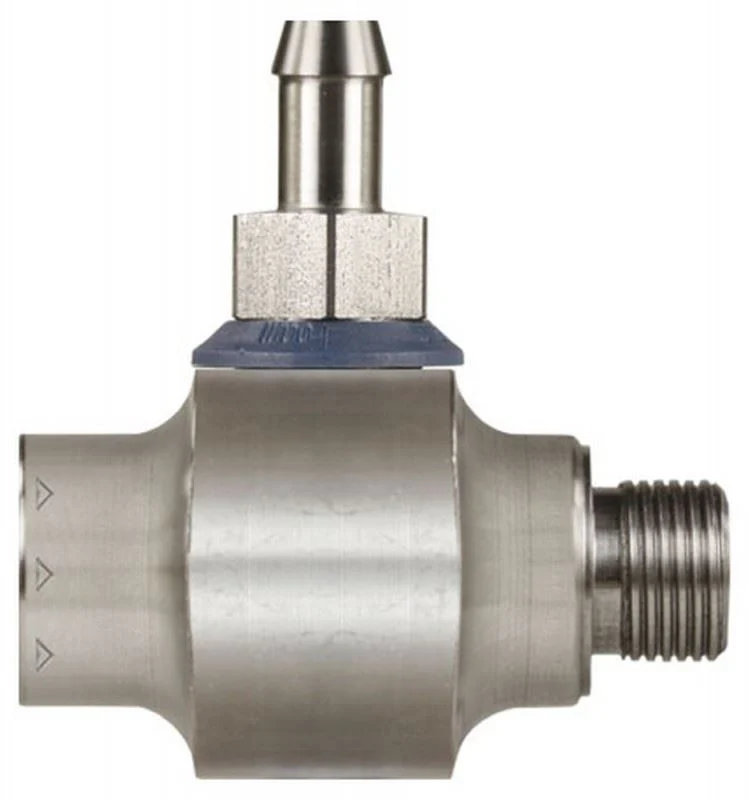

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, 18.0, 5000 PSI, 3/8″ F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35″ I.D. Hose
Specifications • Nozzle/Orifice Size: 18.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
