Description

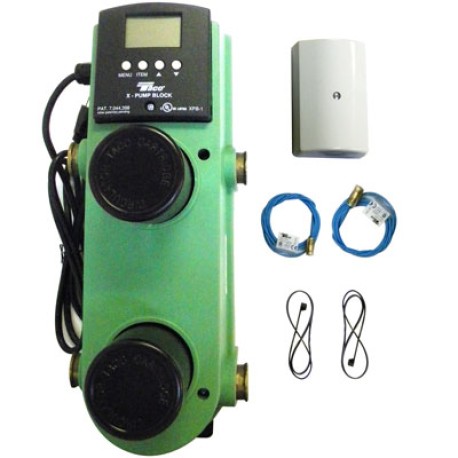

Taco X-Pump Block™ (XPB-1) combines a heat exhanger, a variable speed mixing control, a system circulator pump and a heat source circulator pump in a single unit.You can set the Taco XPB-1 to operate as an outdoor reset control, a setpoint control or a Delta T limiting control without the use of special piping, balancing valves, closely-spaced tees, external controls or complex wiring. Four pipe connections complete the installation.
Taco XPB-1 can handle up to 50,000 BTU’s of heat transfer and is perfect for small to medium radiant heating or snow-melt additions to an existing system.
Taco XPB-1 electrical data:
- Voltage: 120V
- Frequency: 60Hz
- Phase: 1
- Current: 2 Amps
